The EXFO MaxTester 715D is built for point-to-point testing and troubleshooting in FTTx architectures, and is especially suitable for short-fiber applications such as central office work and FTTA/DAS network installation. It uses EXFO's handheld MaxTester 700D platform with a 7-inch outdoor-enhanced touchscreen, OTDR 2 software environment, fast boot-up, and support for intelligent iOLM workflows.
| Brand | EXFO |
| Model | MaxTester 715D |
| Application | Point-to-point links, last-mile installation, and troubleshooting |
| Typical Use | FTTx last-mile, short access-network testing, FTTA fiber-DAS, and CATV/HFC network testing |
| Dynamic Range | Up to 32 dB |
| Event Dead Zone | 0.9 m |
| Attenuation Dead Zone | 3.6 m |
| Display | 7-inch outdoor-enhanced touchscreen |
| Battery Life | Up to 12 hours |
| Connector | Swap-Out connector, field-replaceable |
| Software | OTDR environment with Auto, Real-Time, and automatic macrobend finder functions |
| Optional Functions | iOLM-ready, VFL, power meter, USB tools, and FIP-400B inspection scope compatibility |
Share your fiber type, link length, application scenario, destination country, and quantity. We can help confirm whether the 715D is the right fit for short-fiber FTTx work or suggest stronger alternatives when needed.
Designed for point-to-point links, last-mile installation, and troubleshooting in FTTx and access-network environments.
Supports challenging short-link work with 0.9 m event dead zone, 3.6 m attenuation dead zone, and dynamic range up to 32 dB.
One-touch iOLM capability is available for users who want simplified acquisition, analysis, and go/no-go link interpretation.

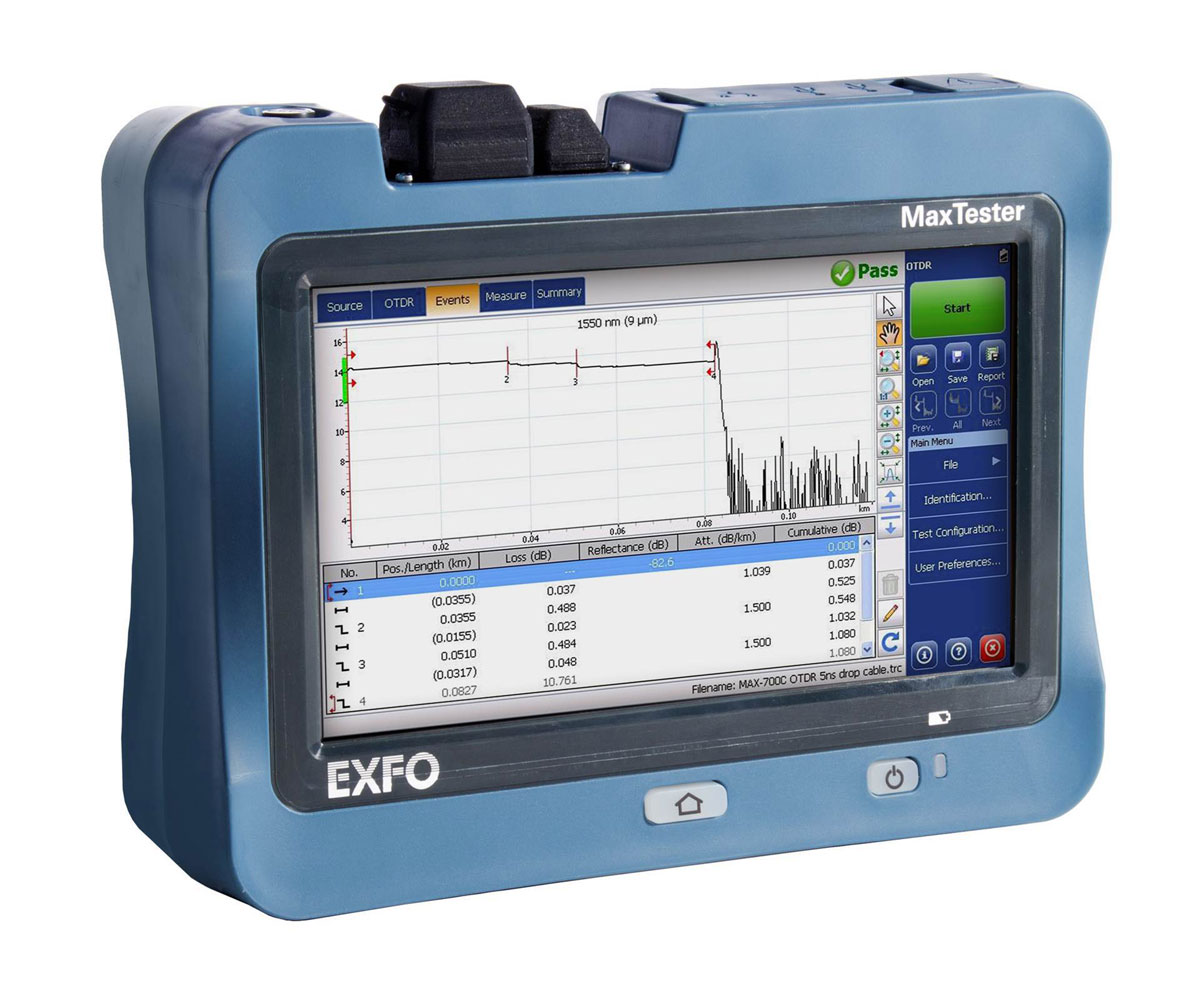

Uses EXFO's rugged MaxTester handheld platform with a tablet-inspired design and outdoor-enhanced touchscreen.

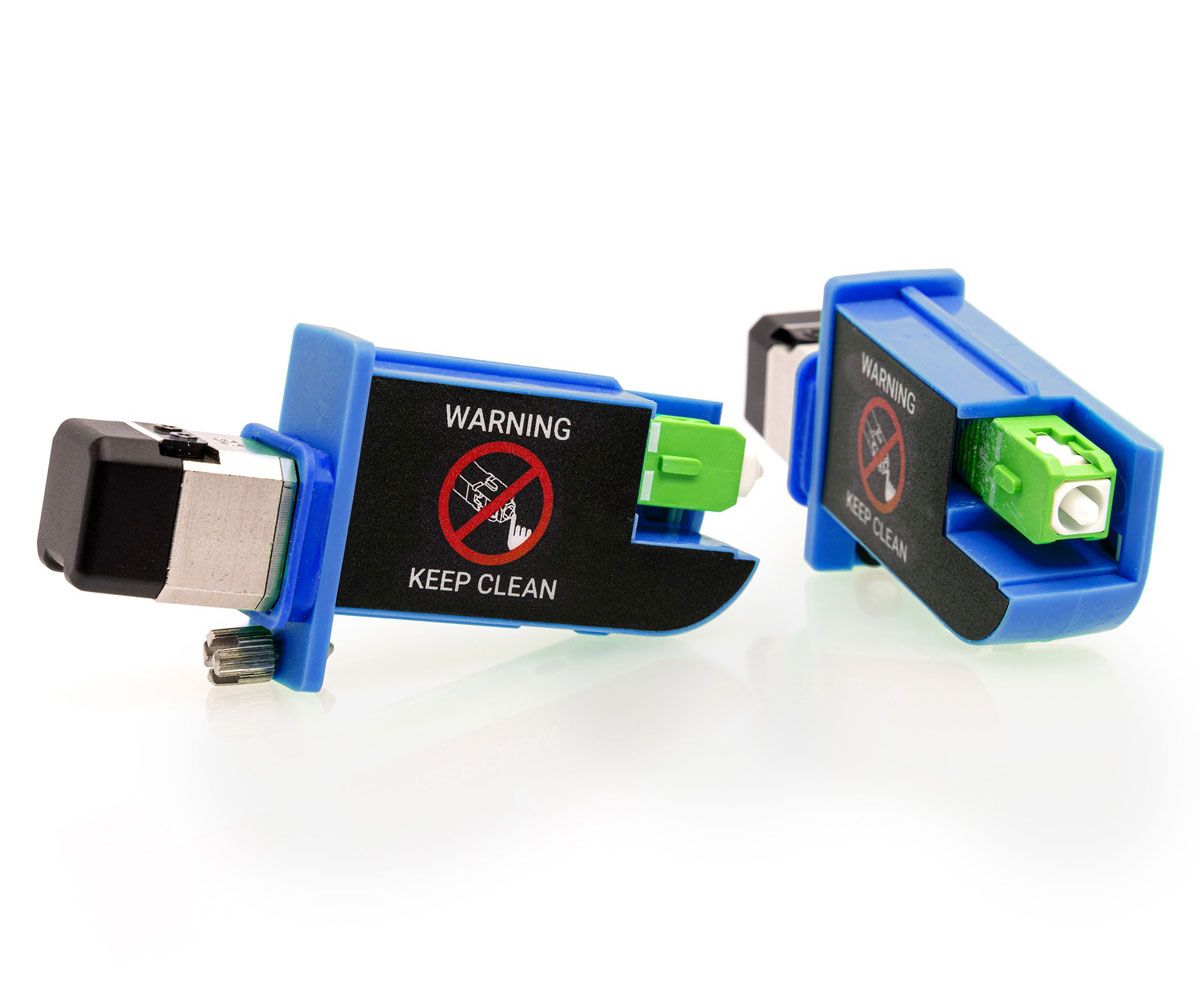

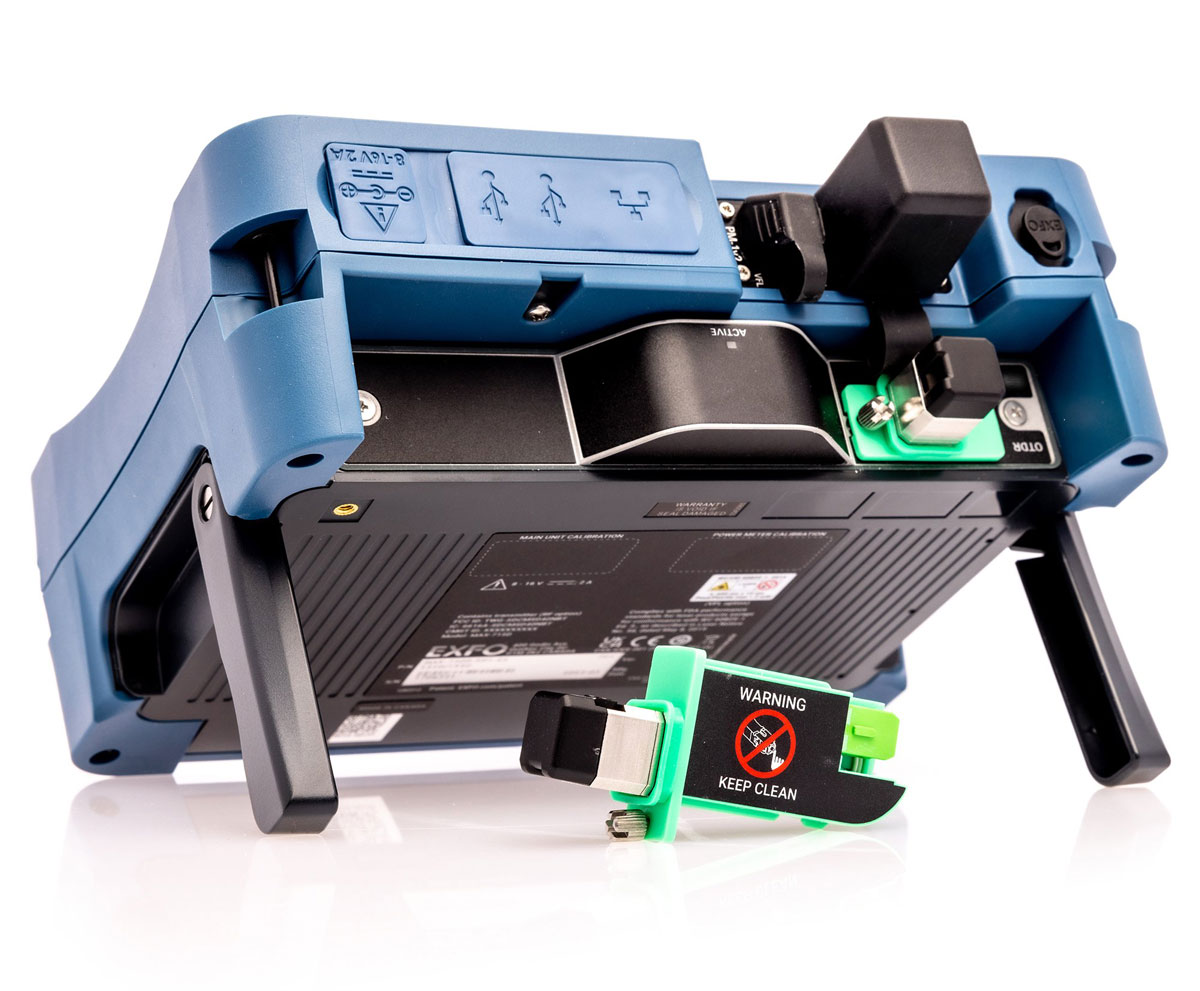

The field-replaceable optical connector helps maintain performance over time without unnecessary downtime or service delays.
Compatible with options such as VFL, power meter, USB tools, and FIP-400B inspection scope support.
iOLM, or intelligent Optical Link Mapper, is EXFO's OTDR-based application that simplifies trace analysis into a more automatic and easier-to-interpret workflow for field technicians.
The MaxTester 715D is built for point-to-point links, last-mile installation, and troubleshooting, especially in singlemode frontline field work.
Typical use cases include FTTx last-mile installation, short access-network testing, FTTA fiber-DAS installations, and CATV/HFC network testing.
According to the EXFO spec sheet, the 715D offers dynamic range up to 32 dB, event dead zone of 0.9 m, and attenuation dead zone of 3.6 m.
The MaxTester 715D provides up to 12 hours of autonomy, helping support full-day field work.
